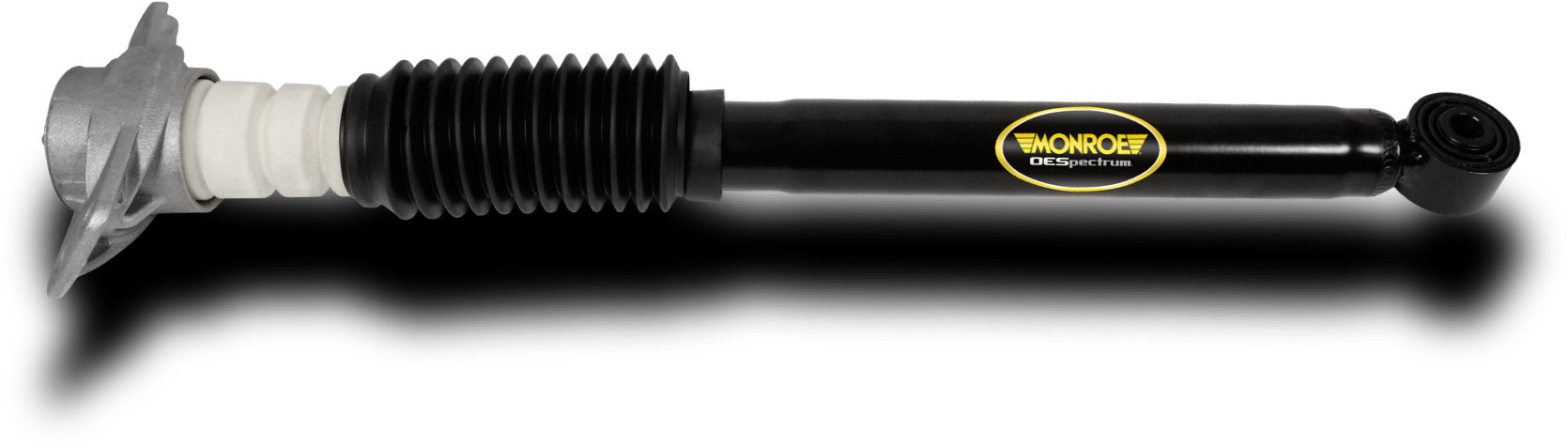

MONROE OESPECTRUM
SHOCK & MOUNT ASSEMBLY

The all-new Monroe® OESpectrum® shock & mount assembly simplifies the installation process, saving you time to service more vehicles. It includes everything you need for a complete repair with a preassembled upper mount, premium Monroe shock, compression bumper, and dirt shield for an all-in-one solution.

FIND MY PARTS

DESIGNED TO SAVE INSTALLATION TIME

Monroe OESpectrum shock & mount assemblies match the OE design with a premium-quality, preassembled upper shock mount. Simplifying the repair process, this innovative shock & mount assembly removes the guesswork with an all-in-one offering for fast, easy installation.

VEHICLE-SPECIFIC SOLUTION

Available for vehicles originally equipped with unique rear suspension configuration to simplify shock installation. Eliminates the need to purchase & assemble separate shock and mounting components prior to installation.

PROTECTS FROM IMPACT, MOISTURE & DEBRIS

Jounce bumper reduces severe suspension movement while protective shield reduces moisture/debris from damaging the shock rod for durability & long service life.

REDUCED NOISE, VIBRATION AND HARSHNESS

Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions.

COMPLETE REPAIR

All-in-one solution with all new mounting components including premium-quality, preassembled upper shock mount matching the OE design offering everything you need for a complete repair.

available parts

MONROE OESPECTRUM SHOCK & MOUNT ASSEMBLY PART NUMBERS
Part Number	Application	Position
139111	2013-2019 Ford Escape 2015-2019 Lincoln MKC	Rear
15607	2004-2009 Mazda 3 2006-2015 Mazda 5	Rear
15630	2011-2019 Ford Fiesta	Rear
15647L 15647R	2014-2020 Chevrolet Impala 2013-2015 Chevrolet Malibu 2016 Chevrolet Malibu Limited 2010-2016 Buick LaCrosse 2010 Buick Allure	Rear Left (15647L) Rear Right (15647R)
15645	2012-2018 Ford Focus	Rear
15683	2012-2013 Mazda 3	Rear
15663	2011-2015 Chevrolet Cruze 2016 Chevrolet Cruze Limited 2011-2015 Chevrolet Volt	Rear
15614	2006-2010 Hyundai Sonata 2006-2011 Hyundai Azera 2007-2009 Kia Amanti	Rear
15611	2014-2005 Volkswagen Jetta 2006-2010 Volkswagen Passat 2005-2010 Volkswagen Bora 2009-2012 Volkswagen Passat CC 2010-2013 Volkswagen Golf 2008 Volkswagen R32 2006-2014 Volkswagen GTI 2011-2017 Volkswagen CC 2006-2009 Volkswagen Rabbit 2010-2014 Volkswagen Golf 2006-2013 Audi A3 Quattro 2005-2013 Audi A3	Rear

Features & Benefits

BUILT TO LAST

Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear.

EXCEPTIONAL HANDLING

Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride.

CONTROL AND DURABILITY

PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability.

IMPROVES PERFORMANCE

Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade.

Limited Lifetime Warranty

Monroe OESpectrum shock & mount assemblies are warranted against defects and wear-out when used on private passenger cars and light trucks under normal operating conditions, for as long as such original purchaser owns the vehicle on which they were originally installed. Monroe OESpectrum shock & mount assemblies are also backed by Monroe’s Feel The Difference™ Guarantee.

VIEW WARRANTY
