WHAT EVERY QUALITY STRUT IS BUILT ON
A strut assembly is only as good as the components inside it. From controlling suspension travel to protecting internal parts from wear, each piece plays a specific role in how the vehicle rides and handles. No matter the application, every well-engineered strut relies on a core set of components working together. Monroe® Quick-Strut® and Magnum® strut assemblies are built around seven essentials, each applied as needed by vehicle application to deliver consistent performance and long service life.
THE COMPONENTS
Every strut assembly is a system, and these seven components form the backbone of how the system manages impact, motion and durability. Here's a closer look at the essentials built into Monroe Quick-Strut and Magnum strut assemblies, each included as applicable based on the OE design.

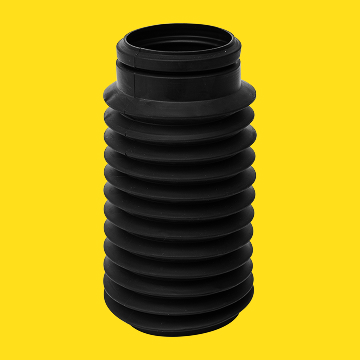

DUST SHIELD
A protective cover that sits around the strut's oil seal and shields it from dirt, moisture and road grime.
Keeps contaminants out and hydraulic fluid in to ensure the internal components stay clean and the strut operates smoothly.
A durable, high-performing dust shield can extend service life and lower overall maintenance costs for vehicle owners.
Monroe uses thermoplastic polyurethane (TPU) dust shields for its excellent oil resistance and ability to stay flexible at low temperatures, ensuring reliable protection in real-world driving conditions.

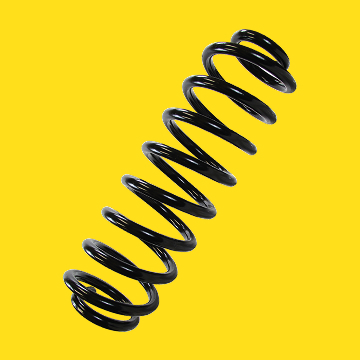

E-COATING
An advanced protective coating process where the part is fully submerged into a paint bath and an electric current draws charged paint particles evenly across every surface.
Creates a uniform, tightly bonded coating that reaches areas traditional spray painting can miss, helping protect the metal from moisture, road salt and everyday wear.
E-coating significantly reduces corrosion by resisting rust, chips and abrasion, resulting in a more durable, longer-lasting part.
Monroe uses a full-immersion e-coating process that wraps the coating around the entire part – including recessed and hard-to-reach areas – before curing it in an oven to form a tough, corrosion-resistant finish that outperforms conventional paint.

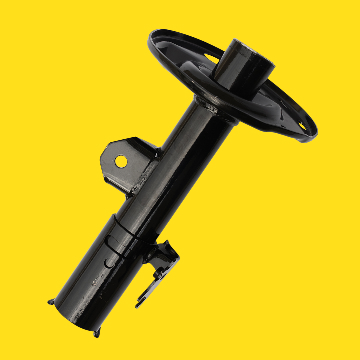

OUTER TUBE
The main tube of the strut, filled with hydraulic fluid and housing the internal components.
Provides the primary load-bearing support for the suspension, protects the internal cartridge and valving, and helps dissipate heat generated during operation.
A strong, properly engineered outer tube maintains structural integrity under constant stress, prevents deformation, and supports consistent damping performance over the life of the strut.
Monroe manufactures its outer tubes from high-strength steel with excellent yield and tensile properties, delivering a durable, long-lasting structure that stands up to real-world driving conditions.

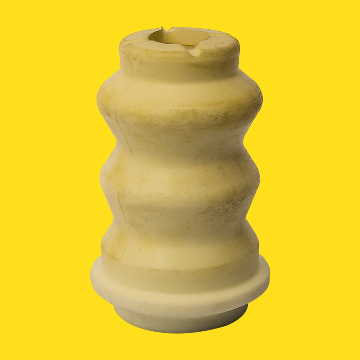

JOUNCE BUMPER
A key safety and comfort component positioned around the piston rod of the strut assembly.
Acts as a protective cushion when the suspension reaches the end of its compression travel. While the coil spring manages everyday impacts, the jounce bumper engages only during excessive compression, limiting extreme movement to protect the suspension, frame and internal strut components.
By absorbing harsh bottom-out forces, a quality jounce bumper helps prevent damage, reduces noise and vibration, and contributes to a smoother, more controlled ride.
Monroe uses polyurethane jounce bumpers for their excellent resistance to weathering, abrasion and harsh environments. This durable material supports long service life and helps maintain a quieter ride with reduced vibration and harshness inside the vehicle.

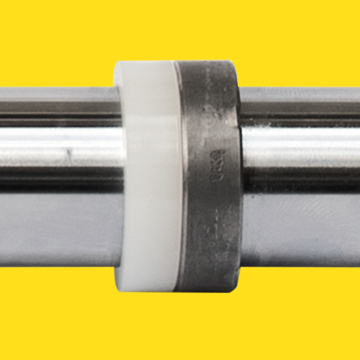

REBOUND BUMPER
A small but critical component inside the strut that controls suspension travel and cushion the strut at the top of its stroke.
Absorbs impact when the suspension extends fully, helping prevent internal damage and eliminating the metal-on-metal noise that can occur when a strut tops out.
A well-designed rebound bumper protects the strut's internal components, reduces noise and harshness, and supports a smoother, more controlled ride – especially over uneven road surfaces.
Monroe uses a robust and high-performing rebound bumper for a quiet, smooth ride while protecting the vehicle's suspension components.
UPPER STRUT MOUNT BUSHING
A natural rubber component that acts as a cushion between the strut mount and the vehicle frame.
Absorbs shocks and vibrations, to reduce noise and minimize unwanted movement and harshness as the suspension cycles.
A quality upper strut mount bushing helps maintain proper alignment, improves steering feel and stability, and contributes to a quieter, more comfortable ride.
Monroe's upper strut mount bushing is engineered to deliver smooth handling, better vehicle stability and reduced noise and vibration for a more comfortable driving experience.

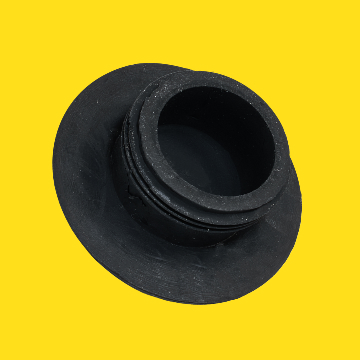

UPPER STRUT MOUNT SEAL
A sealing component that sits on top of the strut mount, creating a barrier against dust, dirt, moisture and debris.
Prevents contaminants from entering the mount bearing, helping the mount operate smoothly and consistently.
A reliable upper strut mount seal protects the bearing from premature wear, prevents noise issues and helps maintain smooth steering response and overall ride quality.
Monroe's upper strut mount seal is engineered to shield internal components from the elements, supporting long service life while helping maintain ride comfort and quiet operation throughout the life of the assembly.
MONROE STRUTS FOR CONSISTENT CONTROL & HANDLING
Every Monroe Quick-Strut and Magnum strut assembly and OESpectrum strut is built on these seven essential components, each engineered for durability, control and long-lasting performance. It's the foundation behind the consistency technicians depend on and the ride quality drivers expect.
